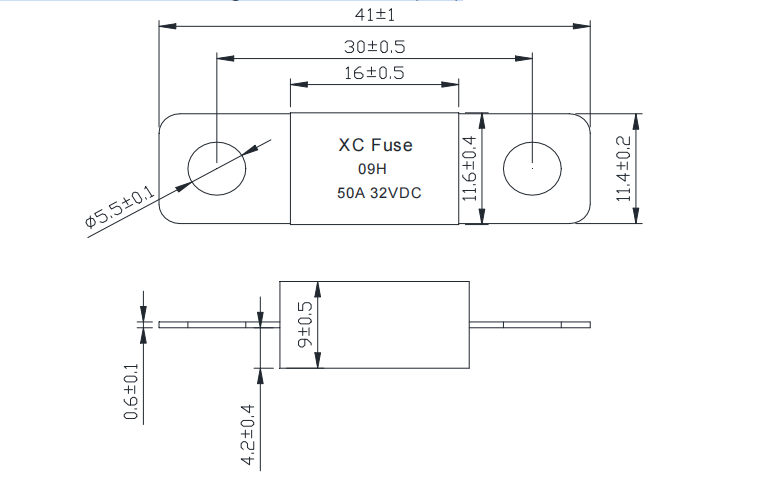

結構尺寸圖Construction Figure & Dimension (mm)

當熔斷體通以下表規定的電流時,其熔斷時間必須符合下表的要求,且管體不應破裂、損壞。 When the current in the following table is passing the fuse, its opening time must be in accordance with the requirements in the following table, that is, the pre-arcing time. Moreover, neither damages of the fuse-tube nor shattering of the cap shall occur.
| 測試電流 | 最小時間 | 最大時間 |
| 110% | 14400 | - |
| 200% | 0 | 100 |
| 300% | 0 | 3 |
?
分斷能力Breaking Capacity
熔斷體的分斷能力應能達到下表規定的相應的各種安全認證的分斷能力要求。保險絲分斷電路后,保險絲管不應破裂、銅帽飛脫、且銅帽兩端的絕緣電阻不小于0.1MΩ。
| 額定電壓 ?Rated Voltage | 額定電流 Rated Current | ?分斷電流 Breaking Capacity |
32VDC | 50A | DC1.5KA |
